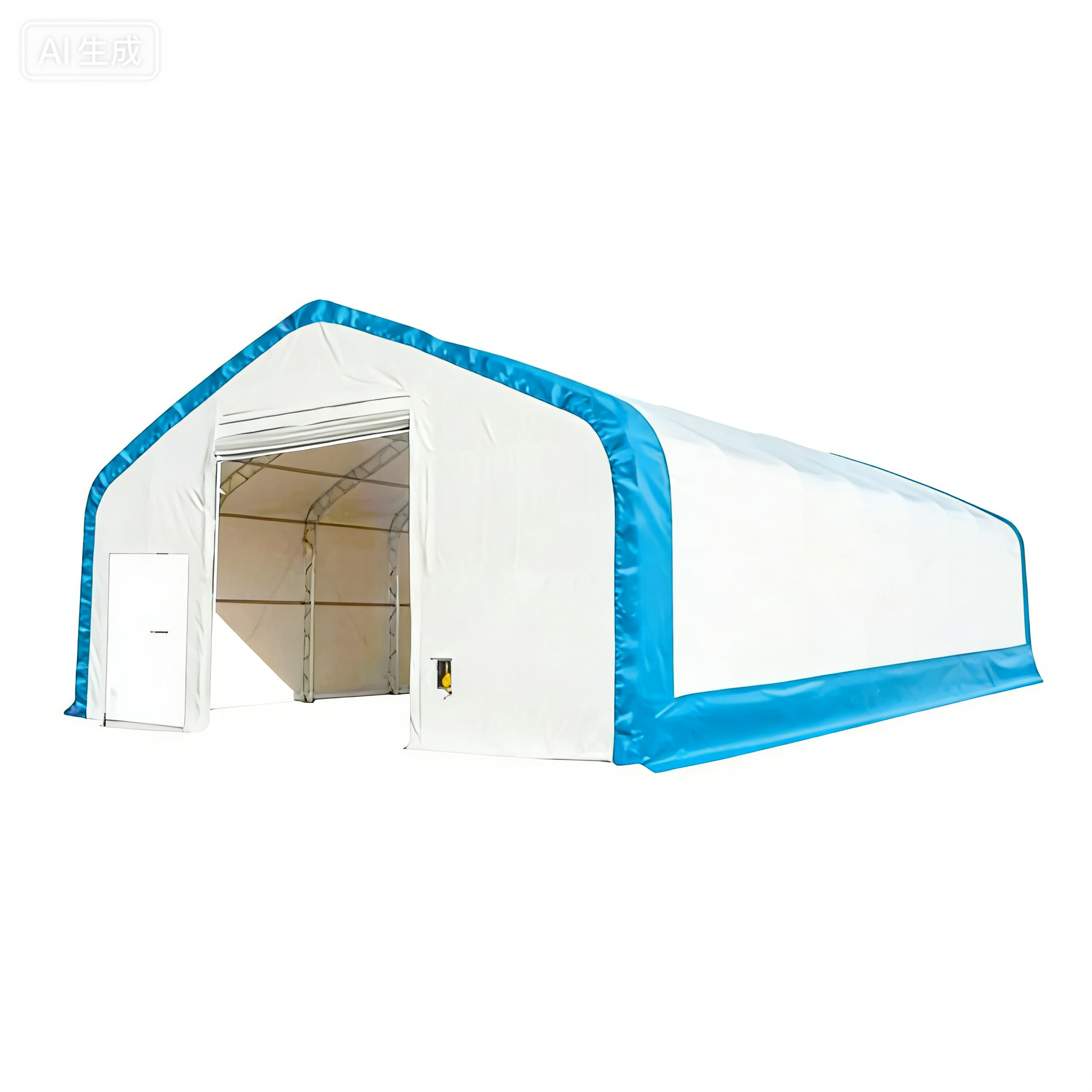

The Double Truss Heavy-Duty Fabric Storage Shelter offers robust, weatherproof protection for vehicles, tools, agricultural equipment, and industrial inventory. Built with a reinforced double-truss galvanized steel frame and high-performance 14.5 oz PVC-coated polyester fabric, it withstands North America’s harshest conditions .
Key Features
- Overall size: 30 FT (W) × 65 FT (L) × 20 FT (H); approx. 1,950 sq.ft. of covered space

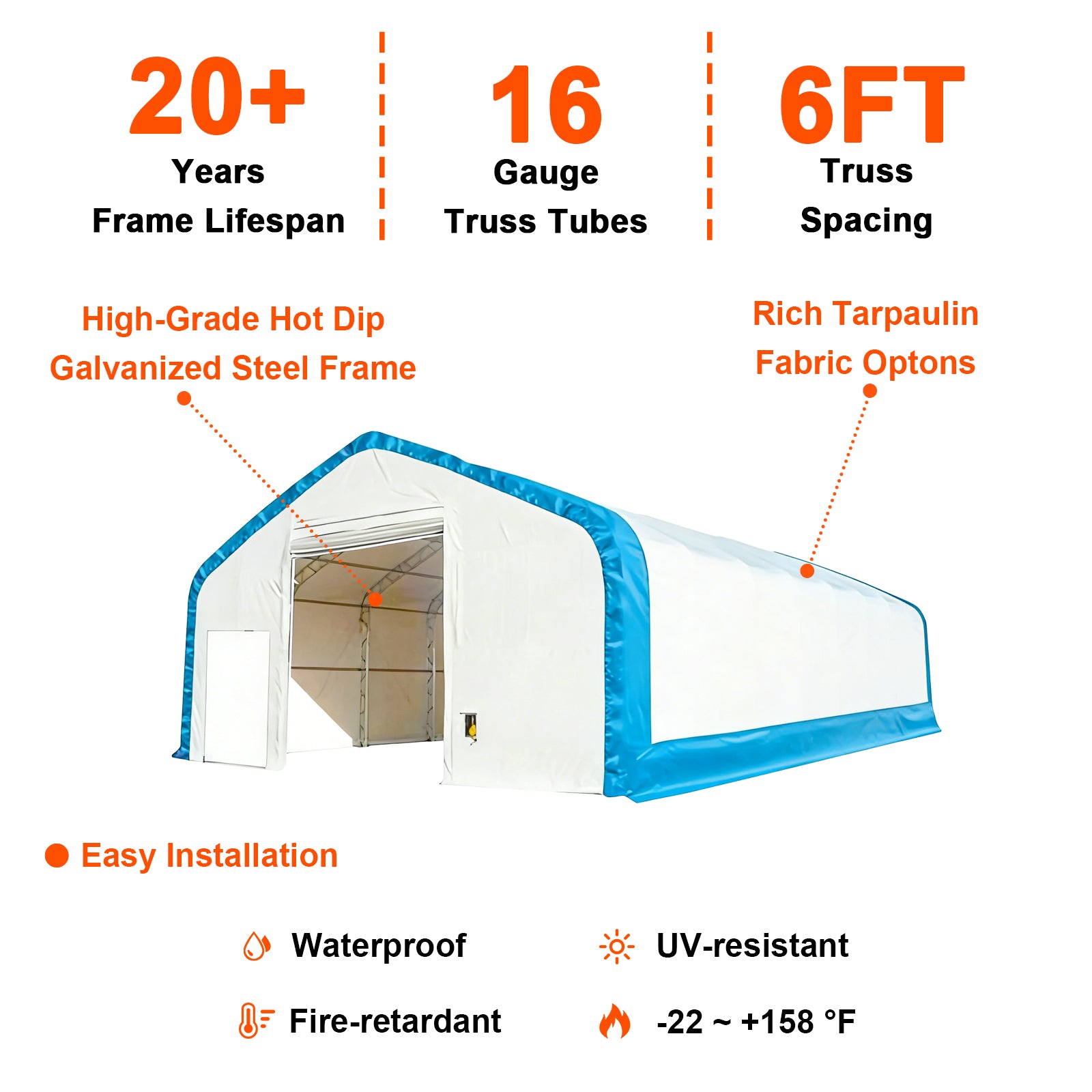

- Frame construction: Double-truss design with 16-gauge hot-dip galvanized steel tubing; 6 ft truss spacing for enhanced stability and load distribution
-
Doors:
- 2 × Mechanical roll-up drive-thru doors: 13 FT (H) × 14 FT (W) (front & rear)
- 1 × Side personnel door: 2.6 FT (W) × 6.6 FT (H) — zippered or hinged
- Only the side has a solid door; front/rear openings are fully framed but covered by roll-up fabric doors
- Fabric: 18 and 22 oz PVC-coated polyester — heat-sealed triple-layer, waterproof, UV-stabilized, fire-retardant, and resistant to mold, mildew, and rot
- Anchoring system: Includes base plates, steel mounting pegs, and heavy-duty ratchet straps for drum-tight fabric tensioning
- Finish: Cream/white main fabric with color-capped roof trim (Green / Gray / Blue — random allocation)
- Durability: Frame lifespan ≥20 years; fabric life 10–15 years under normal conditions
- Installation: Bolt-together assembly; no concrete foundation required; 4-person crew recommended; 3–5 days (weather-dependent)
- Environmental rating: Withstands ≥90 mph winds, regional snow loads, and temperatures from –22°F to +158°F
Use Cases
Perfect as a large vehicle shelter, farm equipment hangar, or industrial storage barn. Ideal for:
- Storing RVs, boats, tractors, trailers, and harvesters
- Protecting hay bales, feed, seed, and livestock handling systems
- Serving as a mobile workshop, repair bay, or contractor staging area
- Providing secure, dry storage for construction materials, tools, and fleet vehicles
- Supporting event logistics, emergency response, or seasonal inventory overflow
