Built with a robust 15-gauge hot-dip galvanized steel double-truss frame and premium PVC-coated polyester fabric
Available Fabric Options (Select at Checkout)
- 22 oz PVC — Standard duty: Ideal for general storage, seasonal use, and moderate climates. Balanced cost & performance.
- 26 oz PVC — Heavy duty: Enhanced tear resistance, superior UV stability, and longer lifespan — recommended for high-wind or snowy regions.
- 32 oz PVC — Premium commercial grade: Maximum durability for year-round industrial, military, or extreme-condition use.
Key Features

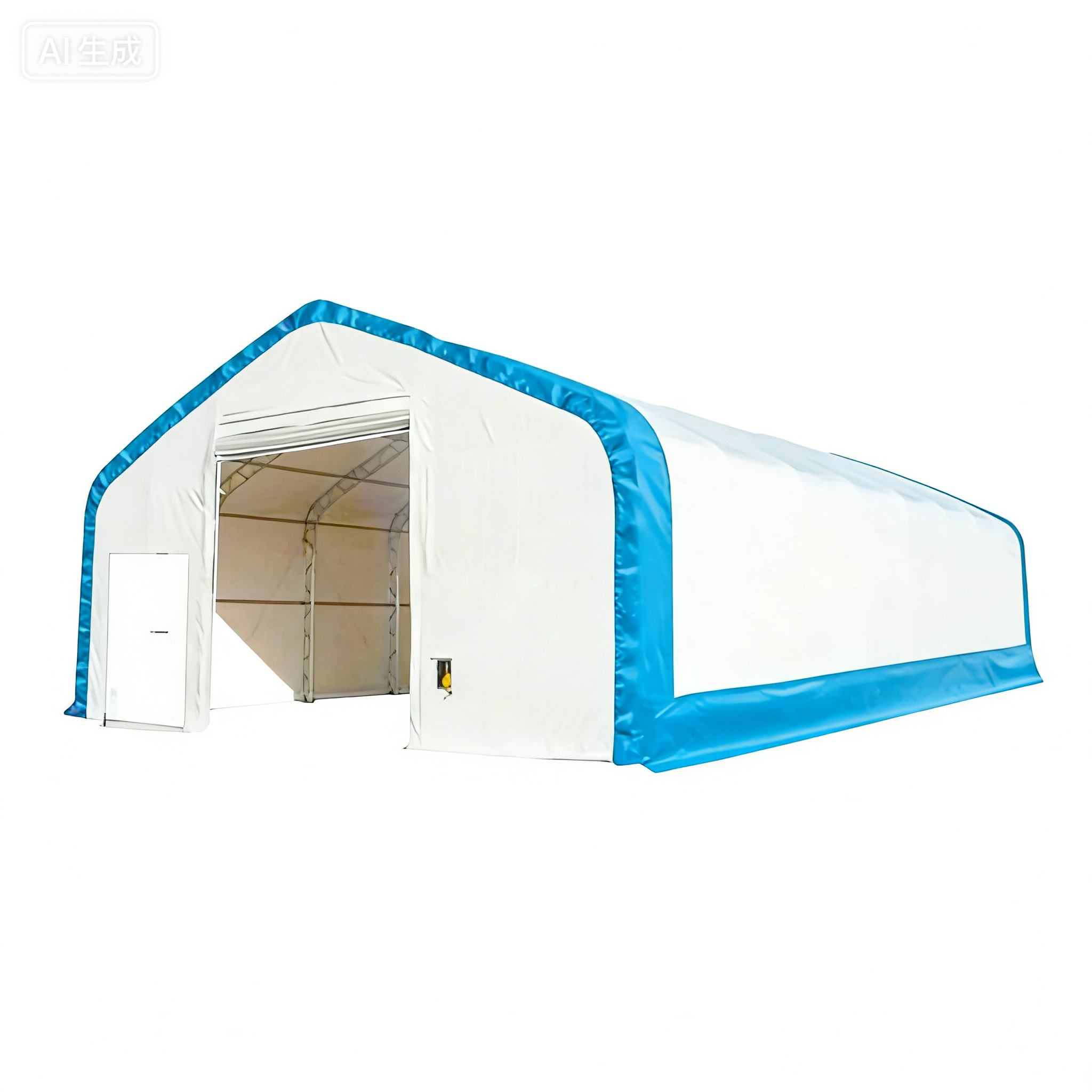

- Overall size: 50 FT (W) × 100 FT (L) × 23 FT (H); 5,000 sq.ft. of covered space
- Frame construction: Double-truss design with 15-gauge hot-dip galvanized steel tubing** (Chery’s standard for 50′ width); 6 FT truss spacing for optimal load distribution
Doors:2 × Mechanical roll-up drive-thru doors: 13 FT (H) × 14 FT (W) (front & rear)1 × Side personnel door: 2.6 FT (W) × 6.6 FT (H) — zippered or hingedOnly the side has a solid door; front/rear are fully framed openings with roll-up fabric coversFabric: Heat-sealed triple-layer PVC — waterproof, UV-stabilized, fire-retardant, mold/mildew resistantVentilation: Top-end vents integrated to improve airflow and prevent condensationAnchoring system: Includes base plates, steel mounting pegs, and heavy-duty ratchet straps for drum-tight fabric tensioningFinish: Cream/white main fabric with vibrant blue trim; cap color options: Green / Gray / Blue (random allocation)Durability: Frame lifespan ≥20 years; fabric life: 12–20+ years (depending on oz and climate)Installation: Bolt-together assembly; no concrete foundation required; 5-person crew recommended; 5–6 daysEnvironmental rating: Withstands ≥90 mph winds, regional snow loads, and temperatures from –22°F to +158°F
Use Cases
Perfect as a large fleet hangar, agricultural mega-shed, or industrial temporary warehouse**. Ideal for:
- Storing semi-trailers, buses, dump trucks, excavators, and combine harvesters
- Protecting bulk feed, hay bales, grain, irrigation systems, and livestock handling equipment
- Serving as a mobile command center, repair bay, or disaster-response hub
- Providing dry, secure storage for construction materials, generators, and backup power units
- Supporting large-scale events, trade shows, military deployments, or seasonal overflow>
