40FT x 40FT x 15FT Shipping Container Shelter – 15 oz PVC Double Truss

Name: 40FT x 40FT x 15FT Shipping Container Shelter – 15 oz PVC Double Truss
SKU: KD1540
Price: 4999.00 USD
Availability: InStock

Original price was: $6,250.00.Current price is: $4,999.00.

40FT x 40FT x 15FT shipping container shelter with single-truss Q235 steel frame, 15 oz PVC cover and approximately 1,600 sq. ft. of covered storage.

Hurry up!
Sales Ends Soon!

Sold Items

11/21 Sold

In Stock

SKU:KD1540Categories:Garages, Outdoor Storage

Key Features

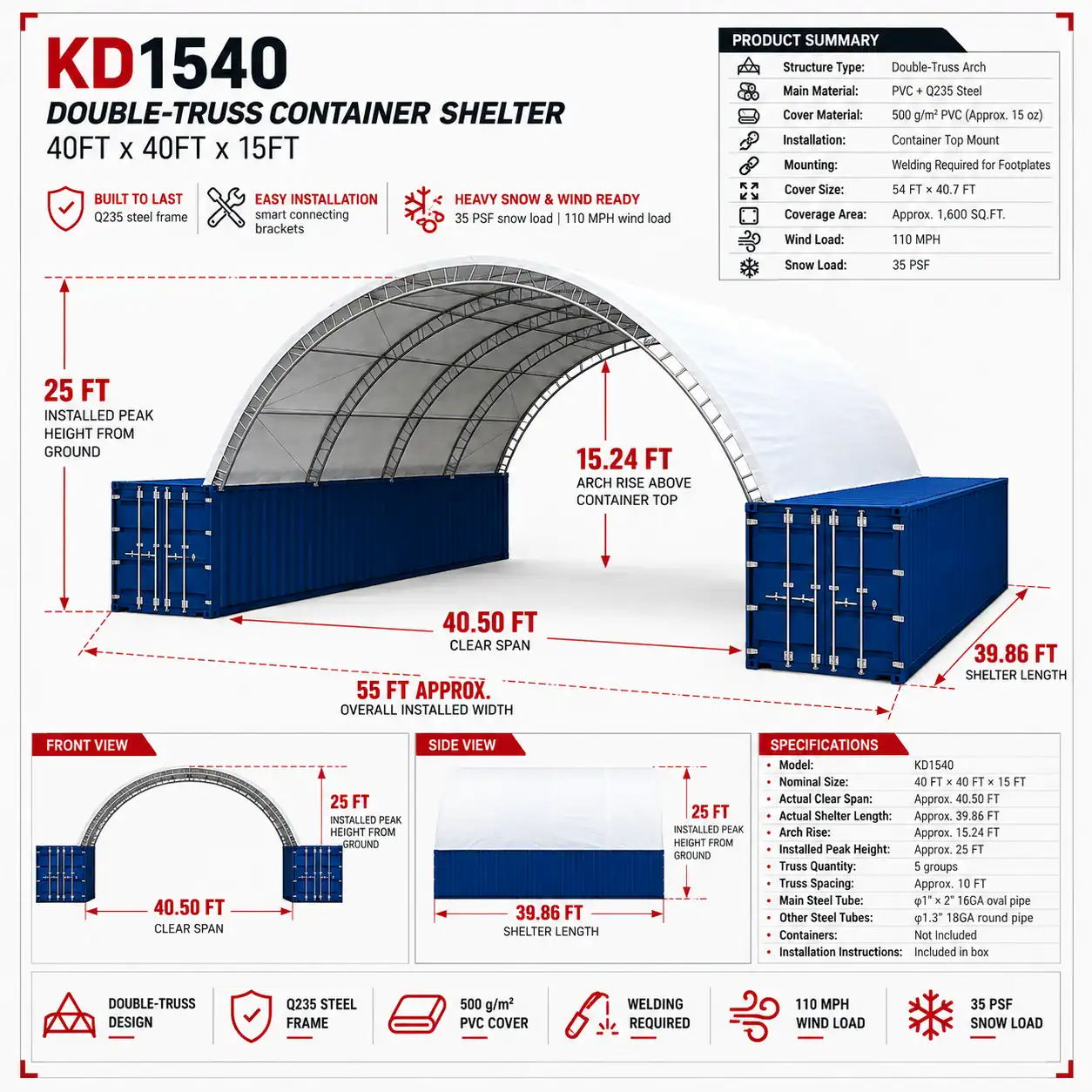

Model	KD1540	Structure Type	Double-Truss Container Shelter
Nominal Size	40FT × 40FT × 15FT	Coverage Area	Approx. 1,600 sq. ft.
Actual Clear Span	Approx. 40.50 FT	Actual Shelter Length	Approx. 39.86 FT
Arch Rise	Approx. 15.24 FT above container top	Installed Peak Height	Approx. 25 FT from ground
Installed Overall Width	Approx. 55 FT including containers	Truss Quantity	5 Groups
Truss Spacing	Approx. 10 FT	Main Material	PVC + Q235 Steel
Main Steel Tube	1″ × 2″, 16GA Oval Pipe	Other Steel Tubes	1.3″, 18GA Round Pipe
PVC Cover	500 g/m², Approx. 15 oz/yd²	Expanded Cover Size	Approx. 54 FT × 40.7 FT
Wind Load	Up to 110 MPH	Snow Load	35 PSF
Cover Tensioning	Ratchet Tensioners	Installation	Container Top Mount; Welding Required for Footplates
Containers Included	No	Installation Instructions	Included in the Box
Package 1	117.7″ × 43.7″ × 20″ / 1,012 lbs	Package 2	117.7″ × 43.7″ × 37.6″ / 1,408 lbs
