Key Features

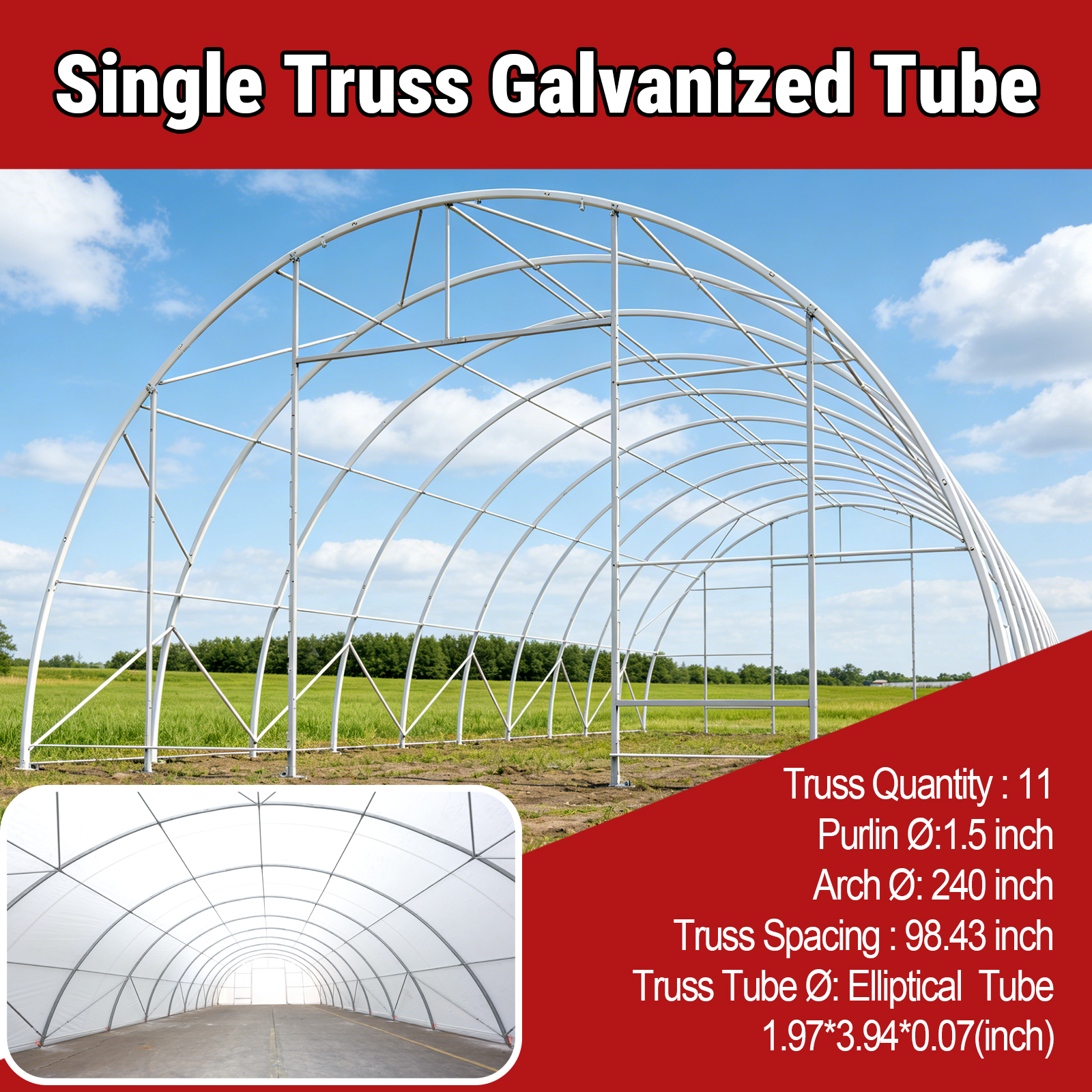

- Robust Frame: 11 single trusses made from galvanized steel tubing (Purlin Ø: 1.5″, Arch Ø: 240″), spaced at 98.43″ intervals — engineered for stability and ease of assembly
- Heavy-Duty Fabric: 500 g/m² (14.7 oz/yd²) PVC-coated tarpaulin — 0.42 mm + 0.05 mm thick (~16.5 mil), heat-sealed triple-layer, waterproof, UV-resistant, fire-retardant, and rated for 20,000+ flex cycles
- All-Weather Performance:
- Wind Resistance: 40 MPH (stable arch frame design)
- Snow Load: 20 PSF (handles moderate accumulation)
- Temperature Range: –22°F to +158°F (all-season durability)
- Long Lifespan: 10+ years for tarp | 15+ years for steel frame (per Chery’s validated testing)
- Easy Installation: Bolt-together assembly; 4–5 person crew; no foundation required — stake into gravel, dirt, or concrete
- Versatile Use: Perfect for hay bales, farm equipment, construction materials, vehicle parking, event staging, or temporary warehousing
Why Choose Single Truss?
- Lower Cost vs. Double Truss — same coverage area at reduced material & shipping cost
- Faster Assembly**</li
- Proven Reliability — identical fabric & frame quality as Chery’s Gold Mountain double-truss line, just optimized for budget-conscious buyers
